Algebraic Formulae For The Perfect Checkmark Symbol

In the case that you are required to render a custom checkmark for use in something like a checkbox, the formulas provided below will create a perfect result:

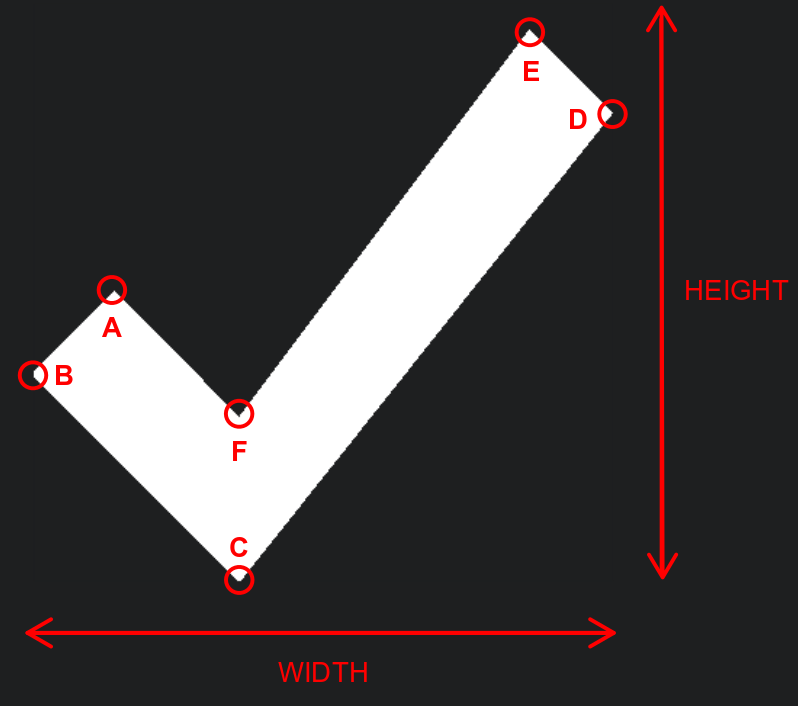

To fill an area where the bottom-left corner is (0, 0):

  • THICKNESS = HEIGHT / 5
  • CENTERING_OFFSET = HEIGHT / 1.5 - WIDTH / 2 - THICKNESS * sin(45) / 2 - THICKNESS * sqrt(2) / 4
  • A - inner left
    • x = THICKNESS * cos(45)
    • y = HEIGHT / 2 + CENTERING_OFFSET
  • B - outer left
    • x = 0
    • y = HEIGHT / 2 - THICKNESS * sin(45) + CENTERING_OFFSET
  • C - outer elbow
    • x = HEIGHT / 2 - THICKNESS * sin(45) + CENTERING_OFFSET
    • y = 0 + CENTERING_OFFSET
  • D - outer right
    • x = WIDTH
    • y = WIDTH + THICKNESS * sin(45) - HEIGHT / 3 + CENTERING_OFFSET
  • E - inner right
    • x = WIDTH - THICKNESS * sqrt(2) / 2
    • y = WIDTH - HEIGHT / 3 + THICKNESS * sin(45) + THICKNESS * sqrt(2) / 2 + CENTERING_OFFSET
  • F - inner elbow
    • x = HEIGHT / 2 - THICKNESS * sin(45)
    • y = THICKNESS * sqrt(2) + CENTERING_OFFSET

It’s also worth noting that if you are planning to render the above checkmark using a graphics library then you may need to prepend HEIGHT - (...) to all the Y-values as graphics libraries typically consider the top of the screen to be Y=0 and the bottom to be Y=HEIGHT.
